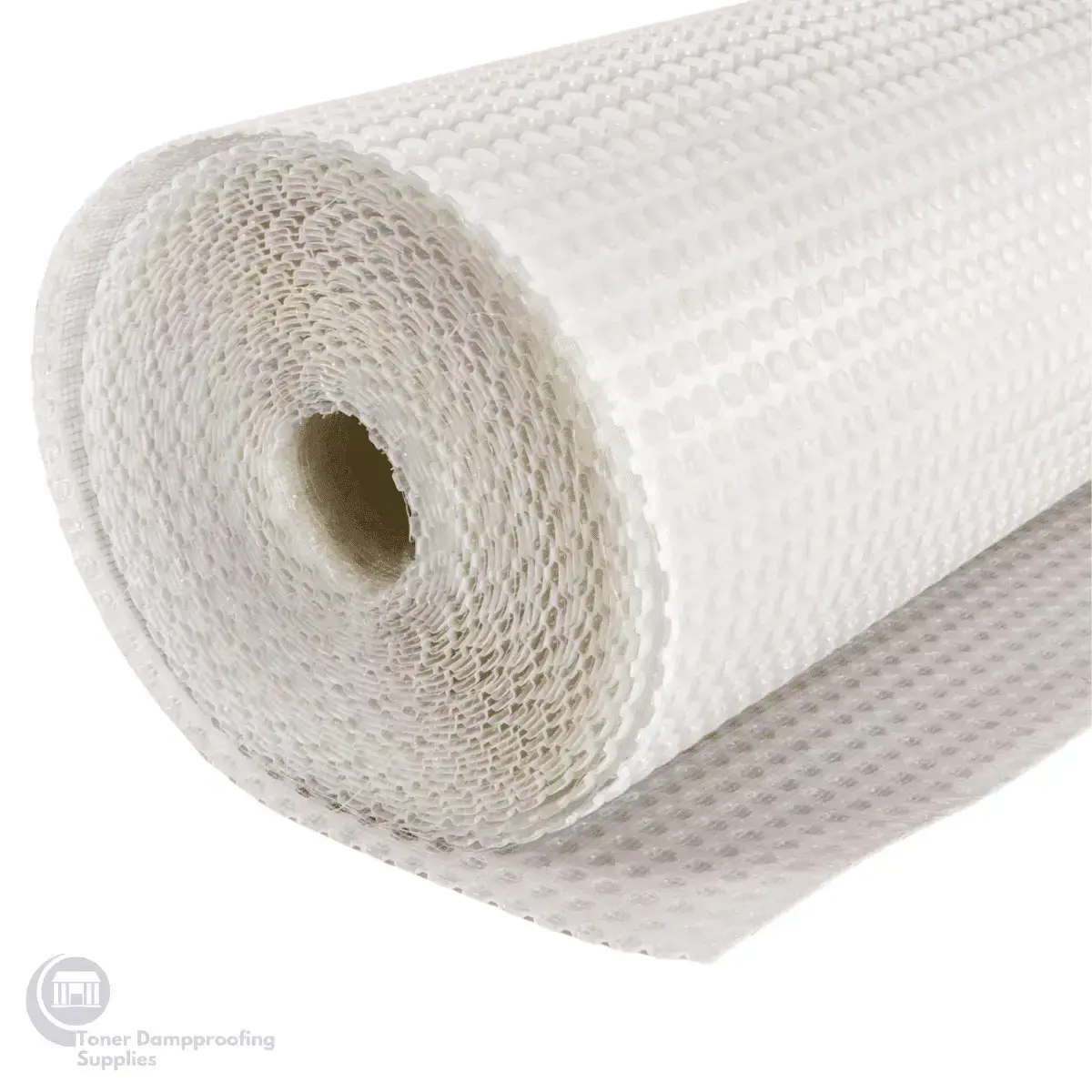

CM3 Cavity Drain Mesh Membrane

101.25311.85

Revitalise your damp spaces with the CM3 Cavity Drain Mesh Membrane, a versatile, 3mm studded membrane that allows for the direct application of various plaster finishes. CM3 Cavity Drain Mesh Membrane is ideal for Type C waterproofing applications, this membrane swiftly transforms damp areas into dry, habitable spaces.

  • Part of a type C cavity drain membrane system in line with BS 8102:2009.
  • Quick to install – minimal preparation needed to wall and floor surfaces.
  • Easy to fold around windows and doors.
  • Easily cut down using a sharp blade.
  • No drying out process – redecoration can occur immediately.
  • Little or no damage to the existing structure.
  • Low and high temperature tolerance.
  • Creates a dry, habitable living space in areas previously suffering from damp/wet conditions.
  • Waterproof, salt inhibiting, root and contaminate resistant.
  • Thinner diameter stud detail only 3mm.
  • Now with a 1.2metre version to eliminate salt band issues.
  • Easy to plaster direct onto membrane or dot and dab.
CM3 Cavity Drain Mesh Membrane
CM3 Cavity Drain Mesh Membrane 101.25311.85

We Deliver Across Ireland & UK

  • 14-Day Returns
  • Place Your Order by 1:00pm for next day dispatch
Shop with Confidence

CM3 Cavity Drain Mesh Membrane: Versatile Damp Proofing & Waterproofing Solution

The CM3 Cavity Drain Mesh Membrane is a premium 3mm studded membrane that features a tough HDPE mesh lathing welded to the front face. This versatile product is designed to allow for the direct application of various plaster finishes, adhesive ‘dabs’, and plasterboards, creating a grade 3 environment compliant with BS8102:2009 and NHBC Chapter 5.4 standards.

CM3 Cavity Drain Mesh Membrane Key Advantages

  • Integral part of a Type C cavity drain membrane system in line with BS8102:2009.
  • Swift installation process with minimal preparation required.
  • Easy to fold around windows and doors and cut down with a sharp blade.
  • Allows immediate redecoration with no drying out process.
  • Causes little or no damage to existing structures.
  • Tolerates both low and high temperatures.
  • Converts damp/wet conditions into dry, habitable spaces.
  • Waterproof, salt inhibiting, root and contaminate resistant.
  • Now available in a 1.2-metre version to eliminate salt band issues.

Typical Uses

  • Walls, both above and below ground level, as well as Type C waterproofing applications and damp-proofing applications.

Substrate Preparation

  • Existing plaster, render or screed should be removed to level surfaces, preferably with Wykamol’s Universal Mortar.
  • Walls suffering from mould or masonry fungi should be brushed clean and treated with Microtech Biocide before the membrane is installed.
  • Dry rot in walls necessitates a detailed assessment before application.

Application

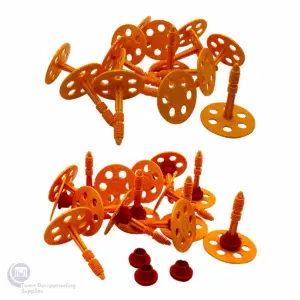

  • Fixing requires Wykamol CM Plaster Plugs or Brick Plugs, with the studs facing the wall.
  • In above-ground applications, the membranes should be sealed by butt jointing and oversealing with Wykamol Fibre Tape.

Finishing and Aftercare

  • The membrane can be finished using standard plastering techniques or dry-lining.
  • Normal decorating materials can be used as soon as the floor, screed or plaster finishes are dry.
  • A mechanical ventilation system is recommended for areas that lack natural ventilation to control condensation.

Additional information

Weight N/A
Dimensions N/A
Size: No selection

1.2M X 10M, 1.2M X 20M, 1M X 10M, 1M X 20M, 2M x 20M
