Stormdry Masonry Absorption Gauge

16.25

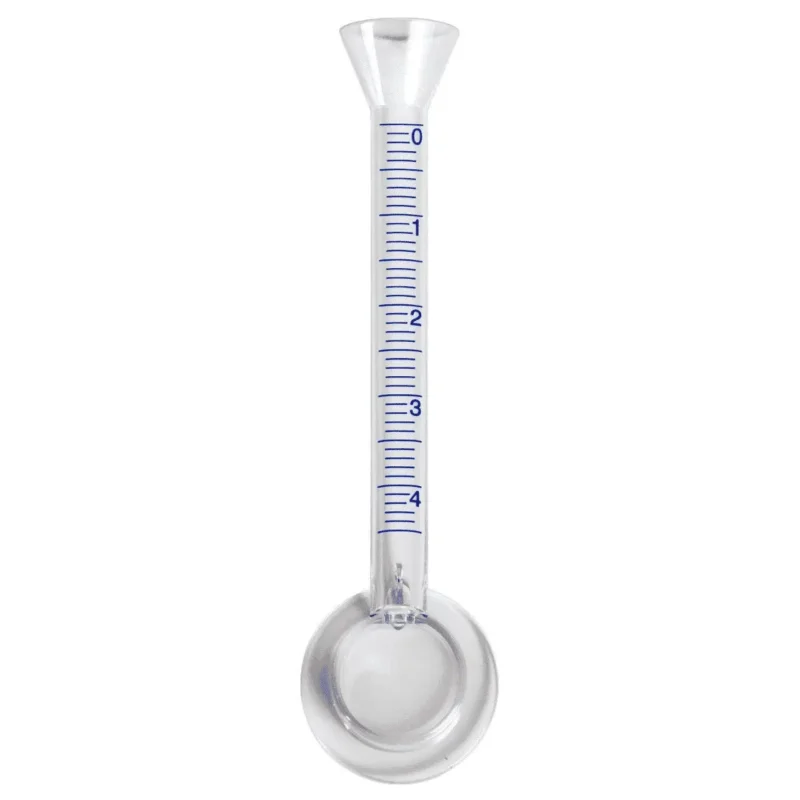

Stormdry Masonry Absorption Gauge (also known as Karsten Tubes or Rilem Tubes) provide a simple method of comparing the absorption characteristics of different sections of masonry (e.g. bricks, stone, mortar, brick mortar interface, etc…).

  • Diagnose rain penetration issues from your own home
  • No specialist equipment required
  • Quick & simple
  • Easy to use
  • Reusable

Available on back-order

Add to Cart
Stormdry Masonry Absorption Gauge
16.25

We Deliver Across Ireland & UK

  • 14-Day Returns
  • Place Your Order by 1:00pm for next day dispatch
Shop with Confidence

Stormdry Masonry Absorption Gauge
16.25


Stormdry Masonry Absorption Gauge

Stormdry Masonry Absorption Gauge (also known as Karsten Tubes or Rilem Tubes) provide a simple method of comparing the absorption characteristics of different sections of masonry (e.g. bricks, stone, mortar, brick mortar interface, etc…). This information can then be used to help determine possible moiture penetration pathways through a wall that is suffering from rain penetration (penetrating damp).

The Stormdry Gauge is fixed to the wall using a suitable mastic adhesive. It is then filled with water and observed. The time taken for the level of water in the tube to drop indicates the degree of absorbency of the test area.

Other Stromdry Accessories

Masonry Absorption Test – The test kit contains four Stormdry gauges together with mastic adhesive and a water bottle. A sample tube of Stormdry Masonry Protection Cream and a brush are also included.

Additional information

Weight 0.07 kg
Dimensions 18 × 7.7 × 4.7 cm
Brand

Stormdry

Application

Application for Stormdry Masonry Protection Cream

  1. Remove any loose mortar, dust etc… using a masonry brush. When biological growth such as moss, algae or lichen needs to be removed, apply SoluGuard Multi-Surface Biocide in accordance with instructions.
  2. Stormdry can be applied by brush around details such as windows. Care should be taken to ensure that Stormdry does not splash onto glass, paintwork, plants, etc. Any splashes should be cleaned away with warm soapy water.
  3. Larger areas can be covered more quickly using roller application. Stormdry can also be applied by electric roller or airless spray – contact our technical department for details.
  4. Check for any “missed” areas that have not been treated (e.g. voids in brickwork, deep mortar beds) and apply Stormdry to these areas using a brush.
  5. Stormdry appears white immediately after treatment – making it easy to tell which areas have been treated.
  6. 15 – 20 minutes after application, Stormdry starts to penetrate into the masonry and the whiteness will fade.
  7. After 24 – 48 hours the wall will have returned to its original appearance.
  8. As Stormdry is formulated to penetrate deeply into masonry it can take up to two months after application for a noticeable “beading effect” to appear when rainfall strikes the wall. The masonry will be resistant to light rain after two to four hours.
  9. A Stormdry Gauge can be used to demonstrate the effectiveness of the treatment. The test should be carried out at least 28 days after applying Stormdry which allows the water absorption of the wall before and after treatment to be compared.
